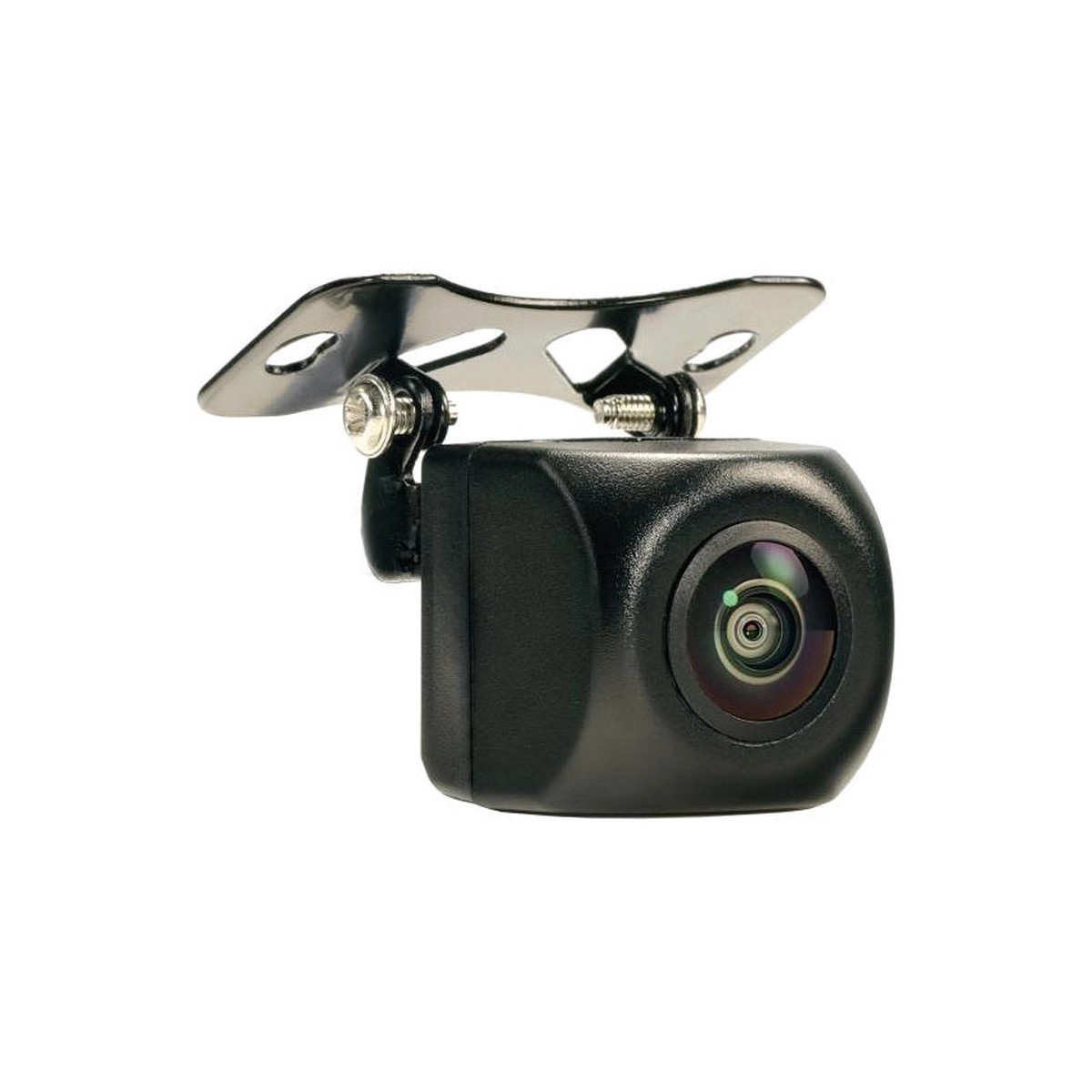

Aerpro ACHD1 – 720P AHD / TVI Switchable Cam Surface Mount Butterfly

The Aerpro 720P HD Surface Mount Camera produces high definition picture quality. Suitable for use on AHD or TVI compatible multimedia receivers and displays, the camera can be used as a front, rear or reverse camera. It features a 170 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.

Features:

• 720P High definition resolution produces crystal clear picture quality
• Suitable for AHD or TVI compatible multimedia receivers and displays only (loop setting adjustable)
• Suitable for use as a front, rear or reverse camera
• Universal surface mount design with adjustable bracket
• 170 Degree horizontal lens angle for a wide field of view
• Optional parking guidelines (loop setting adjustable)
• Optional mirror image (loop setting adjustable)
• Suitable for PAL systems only
• 12V DC Compatible, suitable for cars, utes and small commercial vehicles
• IP67 Weatherproof to withstand harsh operating environments
• Includes 6m RCA video lead with trigger cable

Inclusions:

• Surface Mount Camera
• 6M RCA Video Cable with Trigger
• Camera Harness
• Product Manual

Specs:
Mount Type: Surface Mount
Camera Type: Front, Rear Or Reverse
Monitor Compatibility: AHD or TVI
Resolution: 720P HD
Image Sensor:
Lens Angle 170 Degree
Loop Setting Adjustments:
AHD/TVI (Blue Loop): Default setting AHD, cut the loop for TVI
Parking Lines (Green Loop): Default setting PARKING LINES, cut the loop to remove PARKING LINES
Mirror Image (White Loop): Default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE
IP Rating: IP67
Voltage: 12V DC
Camera End Connection: 4 Pin Micro Din
Monitor End Connection: RCA
Video Cable Length: 6m
Reverse Trigger on Video Cable: Yes
Wired or Wireless: Wired
