Davies, Craig Mechanical Thermatic Electric Fan Switch Kit (12V) – 0401

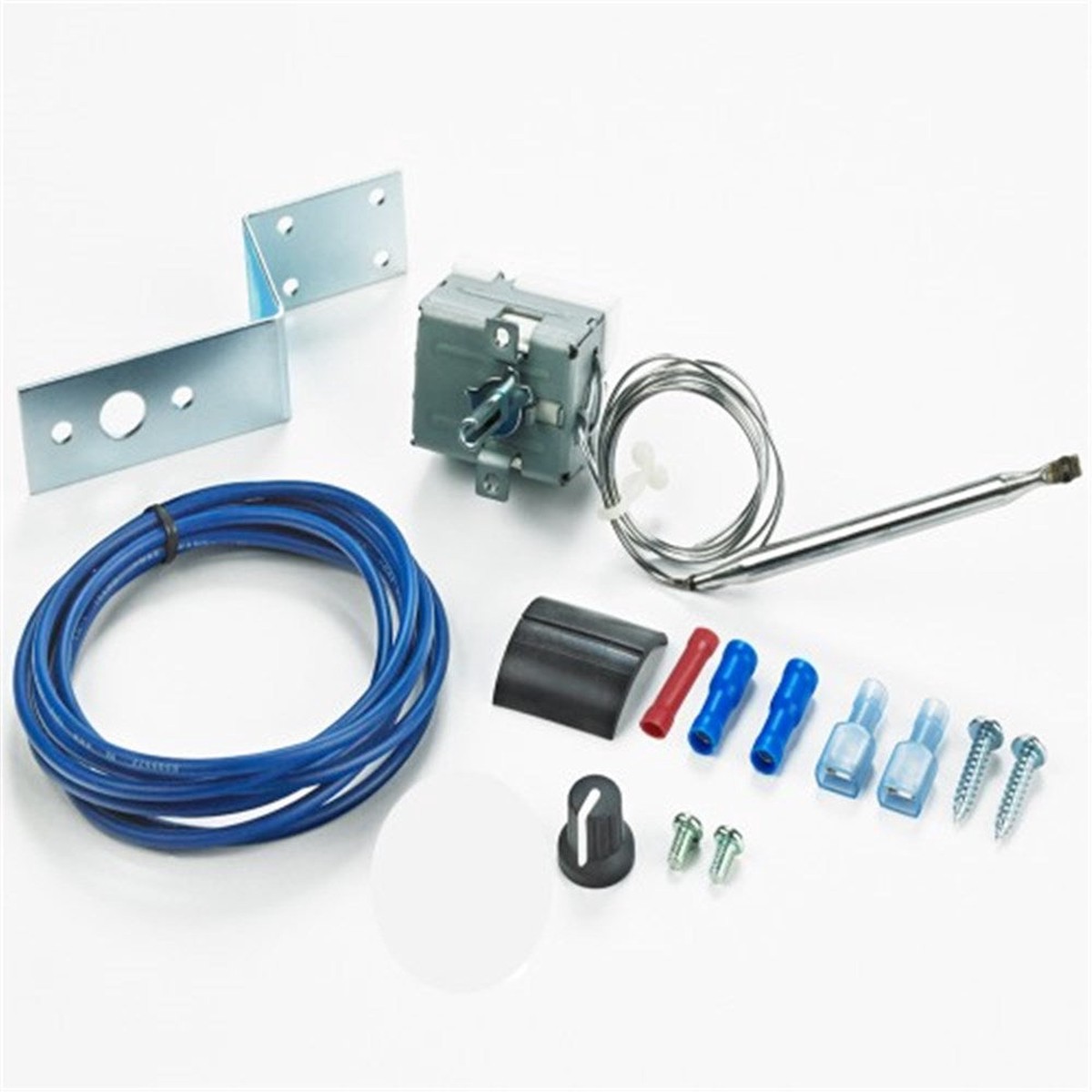

THERMATIC FAN SWITCH (Mechanical) (Part #0401)

The Mechanical Thermatic Fan Switch can be used with our Thermatic Electric Fans & EWPs. It senses the coolant temperature after it passes through the engine block prior to entering the radiator and is adjustable from 40 to 100C (104 to 212F). The Thermal Switch is mounted near the radiator and the stainless steel probe fitted inside the radiator hose. The Thermal Switch & relay kit enables a fan to operate both thermally and also when the air conditioning is running.

Sensor Wire Length: 110cm

RELAYS 12 & 24 VOLT

The switch requires relay & wiring harness to run your fan/s, available directly from Davies, Craig.

Relays:

• 12 Volt Relay: Part #10533
• 24 Volt Relay: Part #10534

UNIVERSAL FAN FITTING KIT (sold separately)

The Davies, Craig Universal Fan Fitting Kit includes all parts necessary for mounting and wiring any 12- and 24-volt electric fans
all Davies, Craig Thermatic Fans and other electric fan models.

• If using Parts #1000, #1001, #1002 or #1003 use the provided hardware to mount the fan to the core as per the instructions provided. Otherwise,
• Quick Fit Kit Part #0579 or Mounting Hardware Part #0578

OPTIONAL ACCESSORIES

Should you not want to squeeze the probe of the Mechanical Thermatic Switch between the radiator inlet and radiator hose, or the radiator fins, we recommend you look at part number 0409 or 0400 (Sold Separately).

The #0409 is a simple, economical Adaptor Kit allows easy fitting directly into the top radiator hose. Just fit the probe into the compression fitting, remove about 17mm (2/3) of radiator hose, fit the adaptor between each hose and secure the hose clamps. The kit comes complete, as shown, for a watertight and effective probe installation. Extra rubber sleeves are supplied to enable fitment to radiator hose sizes from 32mm to 40mm (1 to 1) diameter. Suits all temperature sensors with either a 5mm (3/16) or a 6mm (1/4 outside diameter and temperature gauge senders with 6mm (1/4) NPT thread.

Note: This is an accessory for use with #0401, #0404, #0444 and #0500 Thermatic Electric Switches.

Should you need to account for Air Conditioning, we recommend the Mechanical Thermatic Switch(12V & 24V) plus Relay for Air Conditioning, Part #0404.
