KIT ELKA 2.0 IFP 700lb Fronts and Bilstein 5100/5160 Rears with Leaf Packs Tacoma 05-23

Front Options (Choice)

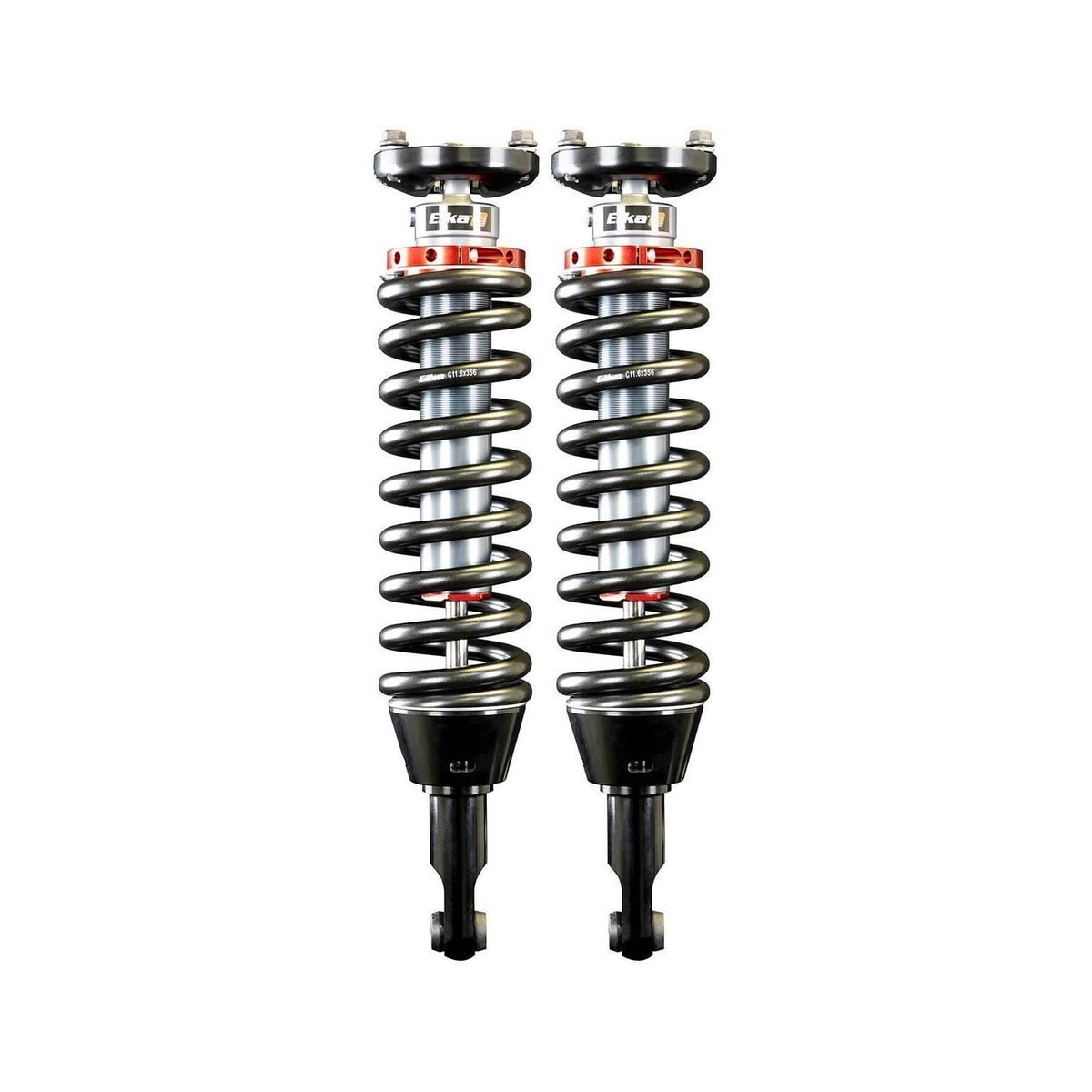

1 x 90227 2.0 IFP FRONT SHOCKS for TOYOTA TACOMA 44, 2005 to 2023 (0 in. to 2 in. lift)
1 x 90230 2.0 IFP FRONT SHOCKS for TOYOTA TACOMA 44, 2005 to 2023 (2 in. to 3 in. lift)
The 2.0 IFP model is a simple bolt-on upgrade over OEM shocks. They are a gas-pressurized design with internal floating piston to help prevent cavitation and fading.
This configuration is for use with stock geometry and can accommodate 0 in. to 2 in. of lift with either stock or aftermarket upper control arms.
Ride height is preset from our factory at approximately 1.5 in. of lift for a stock truck with stock tires, actual ride height may vary depending on wheels dimensions and upper control arms used.
Package includes two (2) side-specific front shocks
ADJUSTMENT
Spring Preload
Increase the off-road capabilities while improving the comfort and handling of your TACOMA
The 2.0 IFP shocks provide the optimal combination of:
Firm and stable handling for driving on desert and fire roads (sports car feeling);
Plush compliance while off-road driving over washboard;
Strong ramping effect for extra bottom-out protection over large dips and washes;
Maximum articulation and traction for rock climbing.
BENEFITS
High-performance off-road capabilities
Improved handling and comfort for casual driving
Better traction
Provides leveling capabilities for better weight distribution
Increased protection against bottoming-out
RIDE ENHANCEMENTS
Spring setup optimized for each setup
Better attenuation of vibration, leading to major noise reduction in the cabin (much less squeak and rattle)
Damping characteristics optimized for each truck and setup, providing a smoother ride
Increased comfort in both on road and off-road conditions, especially over washboard and square-edge impacts
More stable and more predictable handling
Reduced front-end diving when cornering or braking
Reduced rear-end bucking and lifting
Increased damping and spring rate for better handling when towing or loading truck
TECHNICAL FEATURES
Strong 2.0 in. (46mm) hard-anodized aluminum body for cooler operation
Gas-pressurized design with internal floating piston to prevent cavitation and fading
Internal hydraulic valving optimized for each vehicle platform
Built from CNC-machined and forged aluminum parts, aluminum bodies and premium-quality internal components
Heavy-duty 5/8 in. (16mm) induction-hardened shaft
Triple sealing system with dust wiper, high-pressure step-seal and premium quality o-ring
Direct, bolt-on replacement that uses stock shocks location
Proprietary ultra-low friction, light viscosity semi-synthetic oil blend, ultra-resistant to high operating temperature
Coilover models use Elkas durable high-tensile alloy springs or Eibach springs (depending on model & configuration)
Fully rebuildable using affordable replacements parts and springs, multiple replacement valving shim stacks available
Rear Options (Choice)
2 x F4-BE5-B110-T5 Extended 5100 Rears
2 x 25-311259 B8 5160 Suspension Shock Absorber Toyota Tacoma 05-, R, B8 5160
The Toyota Tacoma Bilstein 5100 Series Shocks are designed specifically for your lifted vehicle. These shock absorbers feature a corrosion resistant zinc finish and vehicle specific valving. 5100 Series shocks use Bilsteins superior single tube high gas pressure design for consistent fade-free performance and long life. Bilsteins patented Digressive self-adjusting valving delivers improved damping control and a smooth ride for your truck on all road surfaces at any speed.
Shock Specifications:
Can support, not provide 3-4 of lift
Collapsed: 16.34
Extended = 27.28
Travel = 10.94
UCAs Options (Choice)
No UCA
SPC Adjustable Ball Joint UCAs 35470
Icon Delta Joint UCAs 58450DJ
Rear Lift Options (Choice)
OME Medium Dakar w/ Ubolts+Bushings EL111R
OME Heavy Dakar w/ Ubolts+Bushings EL112R
Icon Multi Rate RXT Leaf Pack w/ Ubolts 158505
Deaver U402 Stage 1 w/ Ubolts+Bushings U402-S1
Deaver U402 Stage 2 w/ Ubolts+Bushings U402-S2
Deaver U402 Stage 3 w/ Ubolts+Bushings U402-S3
Additional Rear Components (Included)
Carrier Bearing Drop FK29
Additional fitment info from vendor. (Please verify and see fitment disclaimer below)
Tacoma 2005-2015
Tacoma 2016-2023
