NGK Spark Plug Racing – R0045Q-10

NGK Racing Series Spark PlugNGK Racing Series plugs are engineered to withstand the harshest engine conditions. Special insulator nose configurations improve throttle response. Corrugated ribs...

Categories: spark plug

Secure Payment Processing
Fast & Reliable Delivery
Easy Returns & Exchange

Description
Reviews (0)

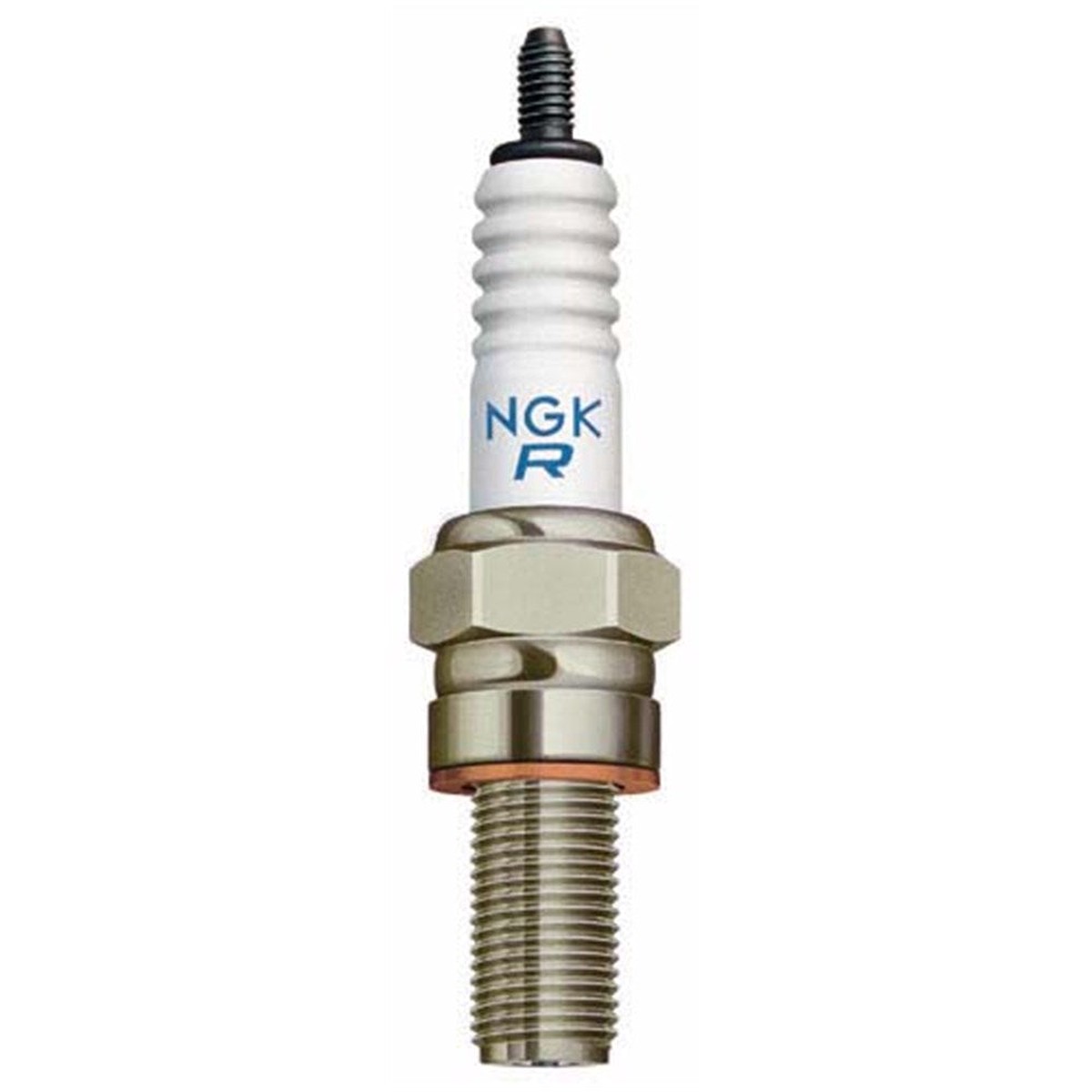

NGK Racing Series Spark Plug

NGK Racing Series plugs are engineered to withstand the harshest engine conditions. Special insulator nose configurations improve throttle response. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.

Product Specifications

Shell
Thread Diameter	10 mm
Thread Pitch	1.0 mm
Seat Type	Gasket
Reach	19 mm (3/4″)
Hex Size	5/8″ (16 mm)
Terminal Type	Removable Nut
Overall Height	ISO
Gap	.012″ (0.3 mm)
Center Electrode
Material	Nickel
Type	Standard
Size	2.5 mm
Projection	Non-Projected
Ground Electrode
Material	Nickel
Type	Surface Discharge
Specifications
Resistor	Yes
Resistor Value	5k Ohm
Heat Range	10
Features	Copper gasket
Torque Specs
Cast Iron	7.210.8 lb. ft.
Aluminum	7.28.7 lb. ft.
Part Information
Brand	NGK/NTK
