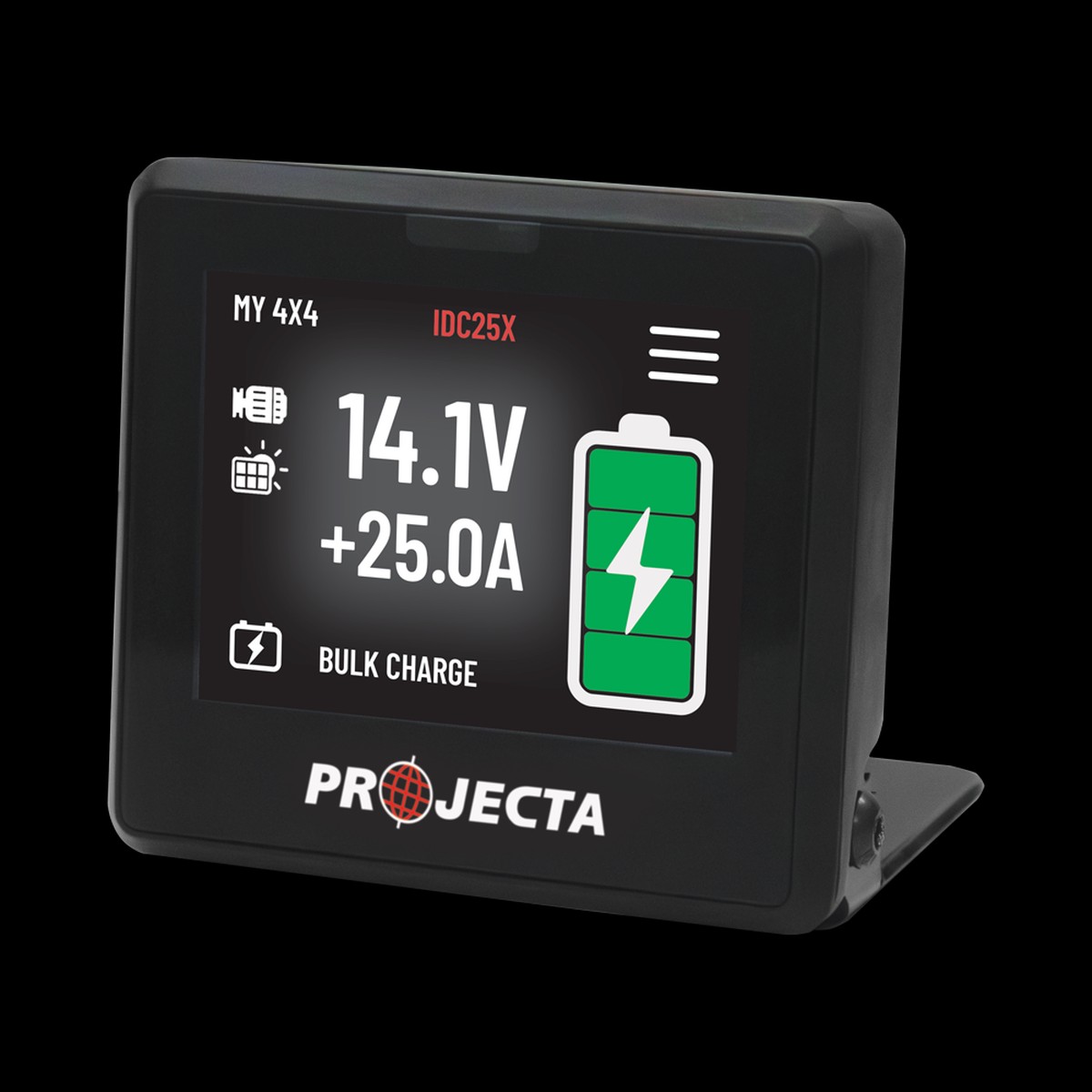

Projecta Intelli IQ Display – IQD2

Advanced monitoring and control interface for the IDC25X DC-DC Charger and auxiliary power systems.

Features

COMPREHENSIVE MONITORING
Provides real-time monitoring of solar input, alternator input, and total output current.

COMPATIBLE WITH MULTIPLE BATTERIES
Allows customisable battery profiles for compatibility with various battery chemistries.

Future-proof design with support for remote software and firmware updates.

Acts as the central hub for the Projecta IoT system, linking connected products seamlessly.

KEY SPECIFICATIONS
POWER SAVING INPUT THRESHOLD: <13.4V
VOLTAGE: 12V
INPUT VOLTAGE: 932V DC
STANDBY CURRENT DRAW: <10mA DC
CURRENT DRAW: <150mA DC
OPERATING TEMPERATURE: -10C TO +50C
REMOTE DISPLAY: Capacitive touch
SCREEN SIZE: 2 inches
DISPLAY/SCREEN RESOLUTION: 320 240 pixel
SCREEN COLOUR: TFT + Backlight
COMMUNICATION – BLUETOOTH: Bluetooth 5.2
COMMUNICATION: LIN 2.1
SAFETY – PROTECTION: Thermal Protection Shutdown
SAFETY – OVER VOLTAGE: Overvoltage Protection

APPROVALS & SAFETY STANDARDS:
ECE R10, AS/NZS 4268, CISPR 11

DIMENSIONS & WEIGHT:
Dimensions: 56 x 17 x 51mm
Weight: 53g

Note: product listing is for the IQD2 only, other items pictured are for illustrative purposes only and can be purchases separately.
